Inter-Step Data Passing

HPCBOX supports passing data between workflow steps using step environment files. This allows a step to export variables that downstream steps can read, enabling dynamic configuration across your pipeline.

Enabling Step Data Passing

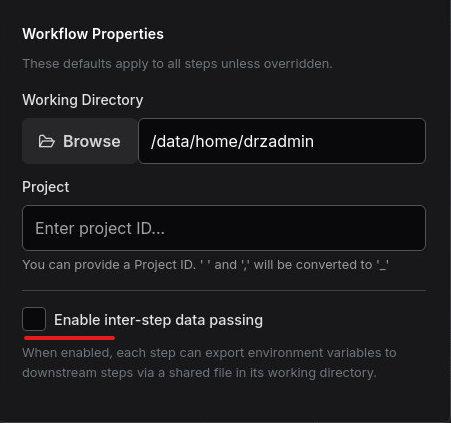

Step data passing is an opt-in feature. To enable it, open the Workflow Properties dialog by clicking the gear icon in the workflow editor toolbar and check the Enable Step Data Passing option.

---

How It Works

1. A workflow step writes key-value pairs to a special file called drz_step_env.<stepname> in its working directory.
2. After that step completes, the executor reads this file and injects the variables into the environment of all downstream steps.
3. Downstream steps can then use these variables just like any other environment variable.

Step Env File Format

The file uses a simple KEY=value format, one variable per line. Lines starting with # are treated as comments and blank lines are ignored.

File name: drz_step_env.<stepname> Location: The step's working directory (DRZ_WD)

# Example: drz_step_env.MeshGenerator
MESH_FILE=case/constant/polyMesh/mesh_fine.msh
MESH_ELEMENTS=245000
SOLVER_READY=true

Writing a Step Env File

In your application script, write variables to the env file using standard shell redirection. The step name is available as DRZ_STEP_NAME:

#!/bin/bash
# Step: MeshGenerator
# Generate the mesh and export its path for downstream steps

blockMesh
MESH_COUNT=$(grep -c "cells" log.blockMesh)

# Write variables for downstream steps
cat > "${DRZ_WD}/drz_step_env.${DRZ_STEP_NAME}" <<EOF
MESH_FILE=${DRZ_WD}/constant/polyMesh
MESH_ELEMENTS=${MESH_COUNT}
EOF

Reading Variables in Downstream Steps

Downstream steps don't need to do anything special. The executor automatically reads the env file and injects the variables before launching the next step. Your scripts can reference them directly:

#!/bin/bash
# Step: Solver (runs after MeshGenerator)
# MESH_FILE and MESH_ELEMENTS are automatically available

echo "Running solver on mesh: $MESH_FILE ($MESH_ELEMENTS elements)"
simpleFoam -case $MESH_FILE

---

Data Passing with Split/Join

When using parallel branches (Split/Join), environment variables from steps inside subshells do not automatically propagate to the parent shell. HPCBOX handles this by sourcing the env files from disk after all branches complete at the Join point.

This means:

• Each branch step writes its env file to its own working directory as normal.
• After the Join node, all branch env files are read and merged.
• Steps after the Join can access variables from all branches.

# Automatically generated after a join:
# Source env files from parallel branch steps
[ -f "$DRZ_WD/drz_step_env.BranchA" ] && source "$DRZ_WD/drz_step_env.BranchA"
[ -f "$DRZ_WD/drz_step_env.BranchB" ] && source "$DRZ_WD/drz_step_env.BranchB"

info

If two branches write the same variable name, the last one sourced wins. Branch env files are sourced in the order they appear in the workflow.

---

Data Passing with Loops

Inside a loop body, step env files work the same way. Each iteration can write to the env file, and the next step within that iteration will receive the variables. Note that each iteration overwrites the env file from the previous iteration (since the step name is the same).

tip

If you need to accumulate results across loop iterations, consider appending to a separate results file (e.g., results.csv) rather than relying on the step env file, which is overwritten each iteration.

---

Environment Variable Reference

The following environment variables are automatically available to every workflow step:

Workflow-Level Variables

These are set from the Workflow Properties dialog and apply to all steps:

Variable	Description	Set By
DRZ_WD	Working directory for the step	Workflow Properties or step override
DRZ_PROJECT	Project identifier	Workflow Properties

Step-Level Variables

Variable	Description	Set By
DRZ_STEP_NAME	Name of the current step	Automatically set
DRZ_SCRIPT	Path to the step's execution script	Application definition
DRZ_APP	Path to the application directory	Application definition

Loop Variables (only inside loop body)

Variable	Description	Example
DRZ_LOOP_NAME	User-defined loop name	MeshRefinement
DRZ_LOOP_ITEM	Current iteration item	fine
DRZ_LOOP_ITER	Zero-based iteration index	0, 1, 2
DRZ_LOOP_TOTAL	Total number of items	10

Environment Layering Order

When a step runs, environment variables are resolved in the following order (later layers override earlier ones):

1. System environment — inherited from the process
2. Workflow defaults — DRZ_WD and DRZ_PROJECT from Workflow Properties
3. Predecessor env — variables from upstream step env files (if data passing is enabled)
4. Loop env — DRZ_LOOP_* variables (if inside a loop body)
5. Step options — application-specific settings configured in the step properties panel

This means a step's own options always take priority. If a step leaves a field empty, the workflow-level default is used as a fallback.
