Workflow Properties

Every workflow has a set of properties that apply to all steps unless individually overridden. These properties control the default working directory, project identification, and inter-step data passing.

Opening the Properties Dialog​

Click the Properties button (gear icon) in the workflow editor toolbar to open the Workflow Properties popover.

Workflow Toolbar

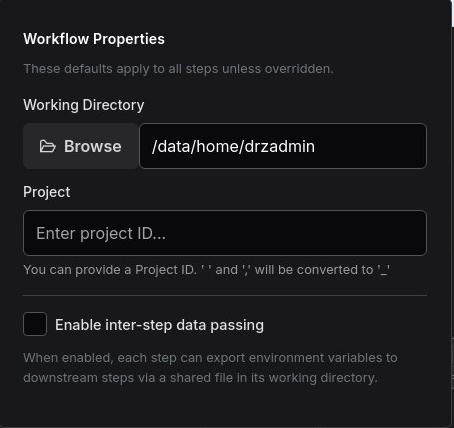

Workflow Properties Dialog

Properties​

Working Directory (DRZ_WD)​

The Working Directory sets the default DRZ_WD environment variable for all steps in the workflow. This is the directory where application scripts will execute and where output files are typically written.

  • Click Browse to select a directory on the cluster.
  • Defaults to the user's home directory ($HOME).
  • Individual steps can override this by setting their own DRZ_WD in the step properties panel.
# In generated scripts, this appears at the top:
export DRZ_WD="/data/projects/simulation_01"
tip

Set the working directory at the workflow level to avoid configuring it on every step individually. Only override it on specific steps that need a different directory.

Project ID (DRZ_PROJECT)​

The Project ID sets the DRZ_PROJECT environment variable, which can be used by application scripts for project tracking, output organization, or job accounting.

  • This field is optional. Leave it empty if your workflow does not require project tracking.
  • Individual steps can override this value in their step properties panel.
# In generated scripts:
export DRZ_PROJECT="CFD-2026-001"

Enable Inter-Step Data Passing​

When checked, this option enables step environment files (drz_step_env.<stepname>) that allow steps to export variables to downstream steps. See the Inter-Step Data Passing guide for full details.

How Overriding Works​

Workflow properties act as defaults. The environment variable layering order is:

  1. Workflow Properties — DRZ_WD and DRZ_PROJECT set here apply to all steps.
  2. Step Properties — if a step sets its own DRZ_WD or DRZ_PROJECT in the step options panel, it overrides the workflow default for that step only.
  3. Safety net — if DRZ_WD is not set at either level, it falls back to the user's home directory.

Example: Mixed Working Directories​

Consider a workflow with three steps where most steps use the same directory but one step needs a different location:

StepDRZ_WD OverrideEffective DRZ_WD
MeshGenerator(empty — uses workflow default)/data/projects/sim01
Solver(empty — uses workflow default)/data/projects/sim01
PostProcess/data/results/sim01/data/results/sim01

In this case, set the Workflow Properties working directory to /data/projects/sim01 and only override DRZ_WD on the PostProcess step.

Saving and Loading​

Workflow properties are saved as part of the workflow file (.hpcbox). When you load a saved workflow or template, the properties are restored automatically. This includes the working directory, project ID, and the step data passing toggle.
